4to1 MC4 Y Branch Connector Solar Panel Parallel Connection

Short Description:

4to1 MC4 Y Branch Connector Solar Panel Parallel Connection( 1 Set = 4Male1 Female + 4Female 1Male ) is a pair of MC4 cable connectors for solar panels These 4Y connectors are typically used for linking 4 solar panels string also parallel connection,fit with MC4 Female Male single Connector from PV Modules,.This 4Y branch connector can fit all MC4 Type Photonic Universe solar panels.It is 100% waterproof IP67, so they can be used outdoors in any weather conditions.


  • Funtion: 4 input , 1 output
  • Rated Voltage: 1000V
  • Rated Current: 50A
  • Waterproof Class: IP67
  • Ambient Temperature: -40℃~100℃
  • Length: 50cm (OEM is acceptable)
  • Product Detail

    Company

    Package

    Projects

    Application

    FAQ

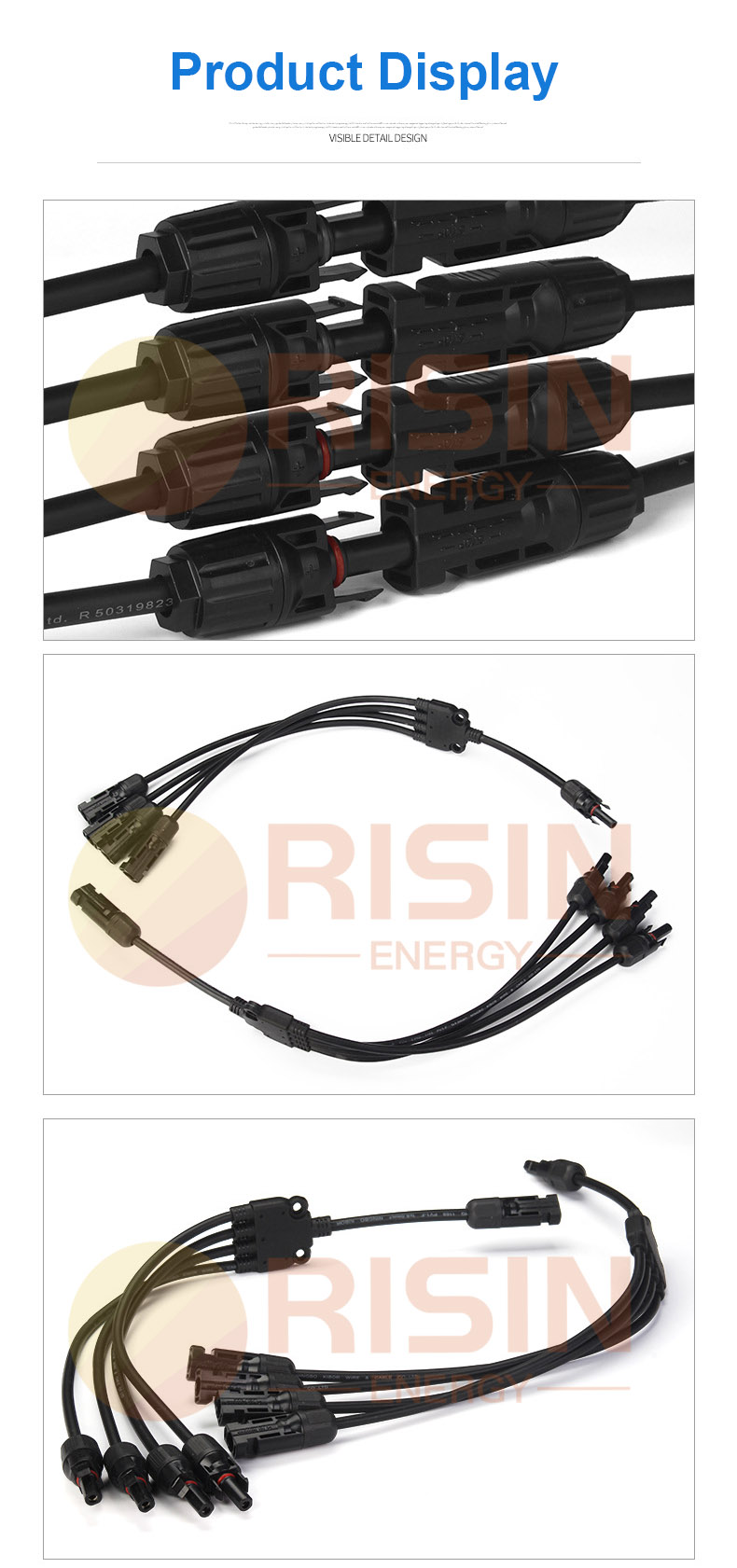

    4in1 Y branch MC4 connector

    Description of 4 to 1 Solar branch wires

    Make wiring parallel 4 solar panels a breeze with these extended MC4 4to1 Y Branch connectors. Primarily suitable for 400W kits, these connectors allow you to install panels in portrait or landscape orientations without the messy wires in your way. Each package comes in pairs.



    single core solar cable

    Description of Solar Branch Connector

    4to1 MC4 Y Branch Connector Solar Panel Parallel Connection is compatible with multi contact 4 connector,It can make 4groups of solar panels in quickly and reliable connection to the photovoltaic system(solar panels, converters).

    mc4 structure

    4to1 Y solar connector

    Technical Data of MC4 Branch Wire

    Rated Current 30A
    Rated Voltage 1000V DC
    Test Voltage 6KV(50Hz,1Min)
    Contact Material Copper, Tin plated
    Insulation Material PPO
    Contact Resistance <1mΩ
    Waterproof Protection IP67
    Ambient Temperature -40℃~100℃
    Flame Class UL94-V0
    Suitable Cable 2.5/4/6mm2 (14/12/10AWG) cable
    Certificate TUV,CE,ROHS,ISO



    Advantage of 1to4 MC4 Connectors

    IP67 4to1 branch MC4

    high quality MC4 1to4

    advantage of 4to1 mc4 Y splitter

    PV branch cable 4to1



    Drawing of 4 to 1 Y Branch Cable (L=50cm , OEM is acceptable)

    Datasheet of MC4-2-1 branch



    Parallel Connection of 4to1 Y branch MC4

    4to1 Y cable using



    Why Choosing Risin ?

    · 12 Years experience in solar factory and trading

    · 30 Minutes to reply after received Your E-mail

    · 25 Years Warranty for MC4 Connector, PV Cable

    · No compromise on quality
