BVR AC Battery Cable PVC Copper 16mm 25mm

Short Description:

BVR AC Battery Cable PVC Copper 10mm 16mm 25mm 35mm is applied to use between combiner box and solar battery. It can make the power safe and output to our AC plants in solar system.


  • Popular Size: 4mm,6mm,10mm,16mm,25mm
  • Rated Voltage: 450V/750V AC
  • Conductor: Stranded,Annealed Bare Copper
  • Insulation: PVC
  • Color: Yellow/Green,Red, Green, Black, Blue, Yellow
  • Package: 100m one roll
  • Product Detail

    Company

    Package

    Projects

    Application

    FAQ

    Application of AC Battery BVR Cables

    The PVC Insulated Wire belong to series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of solar system,driving, lighting, electric equipments, instrument and telecommunication equipments with rated voltage up to 450/750V(UO/U). Part of the plastic wires are used at the equipment with AC rated voltage up to 300/300V.

    微信截图_20200602124002

    Technical Data of AC Battery BVR Cables

    Style BVR
    Popular Size 4mm,6mm,10mm,16mm,25mm
    Conductor Stranded Bare Copper
    Insulation PVC
    Standard GB/T 19666-2005, JB/T8734.2-2006
    Rated Voltage 450V/750V
    Test Voltage 6KV (50Hz,AC)
    Temperature 70℃
    Color Yellow/Green,Red, Green, Black, Blue, Yellow
    Packing 100m/roll

    BVR AC cable

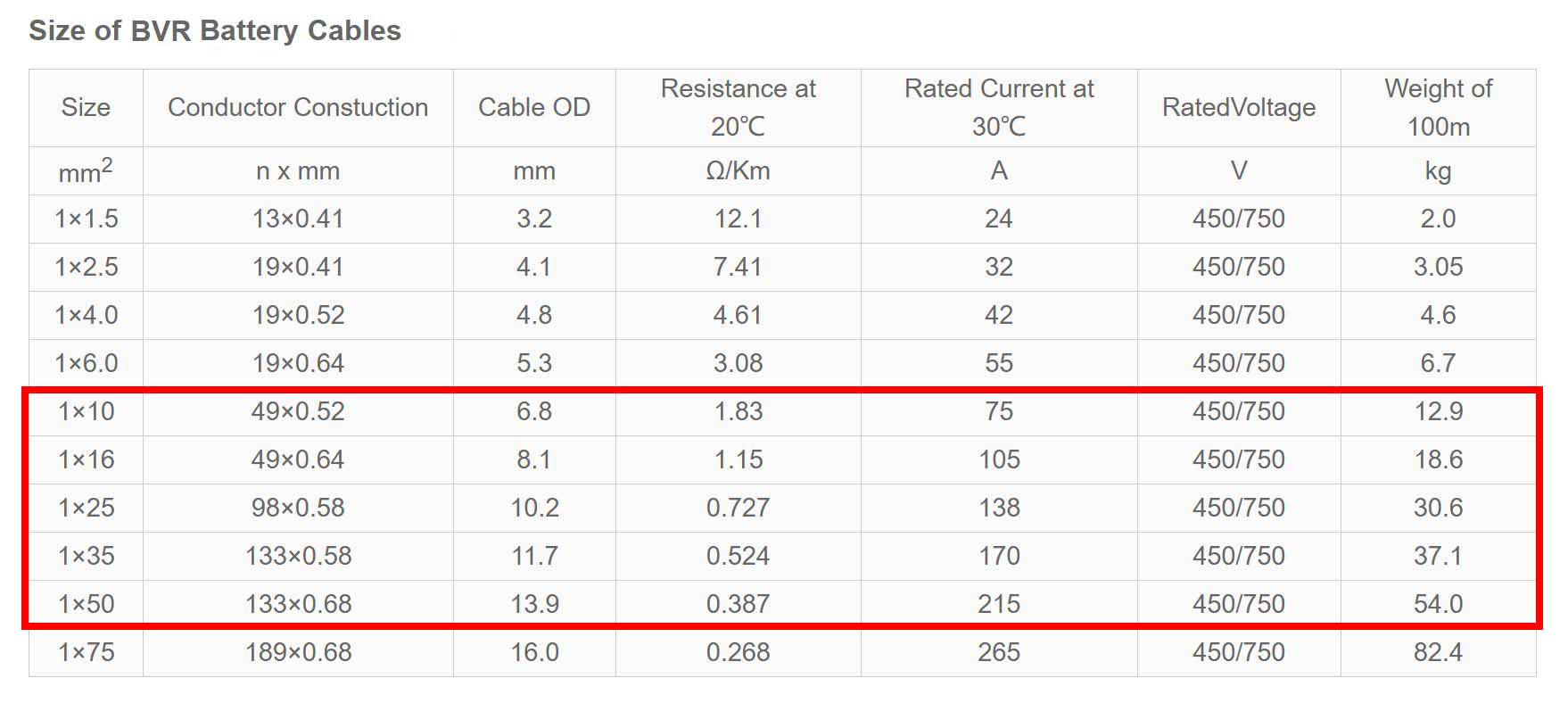

    Size of AC Battery BVR Cables

    Size Conductor Constuction Cable OD Resistance at 20℃ Rated Current at 30℃ RatedVoltage Weight of 100m
    mm2 n x mm mm Ω/Km A V kg
    1×1.5 13×0.41 3.2 12.1 24 450/750 2.0
    1×2.5 19×0.41 4.1 7.41 32 450/750 3.05
    1×4.0 19×0.52 4.8 4.61 42 450/750 4.6
    1×6.0 19×0.64 5.3 3.08 55 450/750 6.7
    1×10 49×0.52 6.8 1.83 75 450/750 12.9
    1×16 49×0.64 8.1 1.15 105 450/750 18.6
    1×25 98×0.58 10.2 0.727 138 450/750 30.6
    1×35 212×0.45 11.7 0.524 170 450/750 37.1
    1×50 304×0.45 13.9 0.387 215 450/750 54.0
    1×75 189×0.68 16.0 0.268 265 450/750 82.4



    Flame Retardant test of PVC Copper AC Cable

    Flame retardent AC Cable

    BVR AC Battery Cable PVC Copper 16mm 25mm adopts environmentally-friendly flame-retardant low-smoke PVC insulation material, which is extinguished instantly after leaving the open flame, and produces only a small amount of white smoke.

    BVR Cable 1

    35mm AC battery wire

    solar battery wire

    AC battery cable wire

    25mm AC battery cable

    BVR solar battery cable

    AC BVR battery cable





    Why Choosing Us ?

    · 10 Years experience in solar industry and trading

    ·  30 Minutes to reply after received Your E-mail

    ·  25 Years Warranty for Solar MC4 Connector, PV Cables

    ·  No compromise on quality


  • Previous:
  • Next:

  • RISIN ENERGY CO., LIMITED. was established in 2010 and located in the famous “World Factory”, Dongguan City. After more than 10 years of continuous development and innovation, RISIN ENERGY has become China’s leading,world-renowned and reliable supplier for Solar PV Cable, Solar PV Connector, PV fuse holder,DC Circuit Breakers,Solar Charger Controller,Micro Grid Inverter, Anderson Power Connector,Waterproof Connector, PV Cable assembly, and various types of photovoltaic system accessories.

    车间实验室 证书

    We RINSIN ENERGY is the professional OEM & ODM supplier for Solar Cable and MC4 Solar Connector.

    We can supply various packages like cable rolls,cartons,wooden drums, reels and pallets for different quantity as you request .

    We can also supply different options of shipment for solar cable and MC4 connector all over the world, like DHL,FEDEX,UPS,TNT,ARAMAX,FOB,CIF,DDP by sea / by air.

    包装 Catalogue of Solar Cable and MC4

    We RISIN ENERGY have provided solar products ( Solar Cables and MC4 Solar Connectors ) to the solar station projects all over the world, which are located in Southeast Asia,Oceania,South-North America,Middle East,Africa and Europe etc.工程

    Solar system includes solar panel,solar mounting bracket,solar cable,MC4 solar connector,Crimper & Spanner solar tool kits,PV Combiner Box,PV DC Fuse,DC Circuit Breaker,DC SPD,DC MCCB,Solar Battery,DC MCB,DC Load device,DC Isolator Switch,Solar Pure Wave Inverter,AC Isolator Switch,AC Home Appliacation,AC MCCB,Waterproof Enclosure Box,AC MCB,AC SPD,Air Switch and Contactor etc. .

    There are many advantages of Solar power system, safety in use, polution free, noise free, high quality power energy, no limit for the resource distribution area, no waste of fuel and short-term construction.That’s why Solar power is becoming the most popular and promoted energy all over the world.

    Solar system components

    Solar system connection

    Q1: What is your company’s Main Products ? You are the Manufacturer or the trader ?

           Our main products are Solar CablesMC4 Solar Connectors, PV Fuse Holder,DC Circuit breakers,Solar Charge Controller,Micro Grid Inverter,Anderson Power Connector and other solar relative products.We’re the Manufacturer with more than 10years experience in solar.

    Q2: How can I get the Quotation of the products ?

           Send your Message to us by E-mail: sales@risinenergy.com,we’ll reply you within 30Minutes in the Working Time.

    Q3: How does your company do regarding Quality Control ?

          1) All raw material we selected the high quality one.

          2) Professional & Skilful workers care every details in handling the producing.

          3) Quality Control Department specially responsible for quality checking in each process.

    Q4: Do you provide OEM Project Service?

           OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.

    What’s more, our R&D team will give you the professional suggestions.

    Q5: How Could I get the Sample ?

           We are honored to offer you FREE samples,but you may need to pay the courier cost.If you have a courier account, you can send your courier to collect samples.

    Q6: How long is the delivery time ?

          1) For Sample: 1-3 Days ;

          2) For small Orders: 3-10 Days;

          3) For mass Orders: 10-18 Days.
