DC Photovoltaic Cable 1500V H1Z2Z2-K Solar Panel wires 6mm2

Short Description:

DC Cable 1500V H1Z2Z2-K Solar Panel wires 6mm2 is used in Photovoltaic power system to connect the solar panel and Solar Inverter or Solar combiner box.They're UV resistant and can be working outdoor in the temperature from -40℃ to 120℃ with 25years working life.


  • Size: 1x2.5mm,1x4mm,1x6mm,1x10mm,1x16mm
  • Standard : TUV EN50618 H1Z2Z2-K
  • Voltage : 1500VDC
  • Temperature: -40℃~120℃
  • Color: Black , Red
  • Product Detail

    Company

    Package

    Projects

    Application

    FAQ

    solar cable advantage

    What is 1500V H1Z2Z2-K Solar Cable 1x4mm:

    solar cable is the interconnection cable used in photovoltaic power generation. Solar cables interconnect solar panels and other electrical components of a photovoltaic system. Solar cables are designed to be UV resistant and weather resistant. They can be used within a large temperature range and are generally laid outside.



    Advantage of Solar Cable 1500V :

    Specific performance requirements for material used for wiring a solar panel installation are given in national and local electrical codes which regulate electrical installations in an area. General features required for solar cables are resistance to ultraviolet light, weather, temperature extremes of the area and insulation suitable for the voltage class of the equipment. Different jurisdictions will have specific rules regarding grounding (earthing) of solar power installations for electric shock protection and lightning protection.

    Hed88a4420e83474d9ed583c288c8e169E1



    3) Jacket Layer :       XLPE,Halogen-free,UV resistant.

    2) Insulation Layer :  XLPE,Halogen-free.

    1) Conductor: 99.99% Strand Tinned Copper Wire.



    Technical Data of 1500V H1Z2Z2-K Single Core Solar Cable

    Rated Voltage 600V/1000VAC,1500VDC
    Conductor 99.99% Strand Copper,Tin plated(According to VDE0295/IEC60228)
    Insulation Polyolefin copolymer electron-beam cross-linked (XLPE/XLPO)
    Jacket Polyolefin copolymer electron-beam cross-linked (XLPE/XLPO)
    Test Voltage 6500V,50Hz,5Min
    Character UV Resistance, Halogen-free
    Ambient Temperature -40oC~120oC,More Than 25 Years (TUV)
    Fire Performance IEC 60332-1
    Smoke Emission IEC 61034,EN 50268-2
    Color Black,Red
    Certificate TUV,CE,ISO
    Standard EN 50618:2014  H1Z2Z2-K

    3

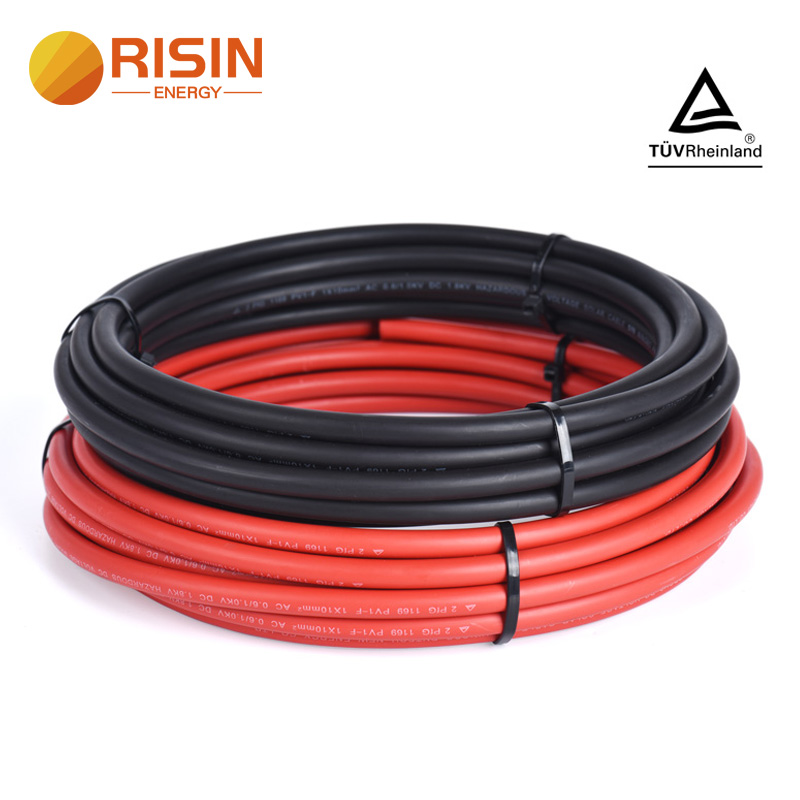

    solar cable wire



    Size of 1500V Solar Cable 4mm 6mm 10mm

    Size Conductor Constuction Conductor OD Cable OD Resistance Max. Rated Voltage 60℃ Ampacity
    mm2 n x mm mm mm Ω/Km VDC A
    1×1.5 30×0.25 1.58 4.6 13.7 1500 30
    1×2.5 47×0.25 1.98 5.1 8.21 1500 41
    1×4.0 56×0.28 2.35 5.5 5.09 1500 55
    1×6.0 84×0.28 3.06 6.3 3.39 1500 70
    1×10 142×0.28 4.60 7.8 1.95 1500 98
    1×16 228×0.28 5.60 9.2 1.24 1500 132
    1×25 361×0.28 6.95 11.3 0.795 1500 176
    1×35 494×0.28 8.3 13.3 0.565 1500 218

















    The current-carrying capacity is under the situation of laying the single cable in air.

    黑色电缆优点

    红色电缆优点

    solar panel connector



     Solar Connection From Solar panel to PV Inverter

     Solar system connection



    Why Choosing Risin ?

      · 12 Years experience in solar factory and trading
      · 30 Minutes to reply after received Your E-mail
      · 25 Years Warranty for MC4 Connector, PV Cable
      · No compromise on quality


  • Previous:
  • Next:

  • RISIN ENERGY CO., LIMITED. was established in 2010 and located in the famous “World Factory”, Dongguan City. After more than 12 years of continuous development and innovation, RISIN ENERGY has become China’s leading,world-renowned and reliable supplier for Solar PV Cable, Solar PV Connector, PV fuse holder,DC Circuit Breakers,Solar Charger Controller,Micro Grid Inverter, Anderson Power Connector,Waterproof Connector, PV Cable assembly, and various types of photovoltaic system accessories.

    车间实验室 证书

    We RINSIN ENERGY is the professional OEM & ODM supplier for Solar Cable and MC4 Solar Connector.

    We can supply various packages like cable rolls,cartons,wooden drums, reels and pallets for different quantity as you request .

    We can also supply different options of shipment for solar cable and MC4 connector all over the world, like DHL,FEDEX,UPS,TNT,ARAMAX,FOB,CIF,DDP by sea / by air.

    包装 Catalogue of Solar Cable and MC4

    We RISIN ENERGY have provided solar products ( Solar Cables and MC4 Solar Connectors ) to the solar station projects all over the world, which are located in Southeast Asia,Oceania,South-North America,Middle East,Africa and Europe etc.工程

    Solar system includes solar panel,solar mounting bracket,solar cable,MC4 solar connector,Crimper & Spanner solar tool kits,PV Combiner Box,PV DC Fuse,DC Circuit Breaker,DC SPD,DC MCCB,Solar Battery,DC MCB,DC Load device,DC Isolator Switch,Solar Pure Wave Inverter,AC Isolator Switch,AC Home Appliacation,AC MCCB,Waterproof Enclosure Box,AC MCB,AC SPD,Air Switch and Contactor etc. .

    There are many advantages of Solar power system, safety in use, polution free, noise free, high quality power energy, no limit for the resource distribution area, no waste of fuel and short-term construction.That’s why Solar power is becoming the most popular and promoted energy all over the world.

    Solar system components

    Solar panel to inverter system

    Q1: What is your company’s Main Products ? You are the Manufacturer or the trader ?

           Our main products are Solar CablesMC4 Solar Connectors, PV Fuse Holder,DC Circuit breakers,Solar Charge Controller,Micro Grid Inverter,Anderson Power Connector and other solar relative products.

           We’re the manufacturer with more than 12years experience in solar.

    Q2: How can I get the Quotation of the products ?

           Send your message to us by email: sales@risinenergy.com,then we’ll reply you within 30minutes in the Working Time.

    Q3: How does your company do regarding Quality Control ?

          1) All raw material we selected the high quality one.

          2) Professional & Skilful workers care every details in handling the producing.

          3) Quality Control Department specially responsible for quality checking in each process.

    Q4: Do you provide OEM Project Service?

           OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.

    What’s more, our R&D team will give you the professional suggestions.

    Q5: How Could I get the Sample ?

           We are honored to offer you FREE samples,but you may need to pay the courier cost.If you have a courier account, you can send your courier to collect samples.

    Q6: How long is the delivery time ?

          1) For sample: 1-2 days ;

          2) For small orders: 1-3 days;

          3) For mass orders: 3-10 days.
