Solar PV Circuit Breaker DC1000V DC550V DC800V DC MCB 6A to 63A

Short Description:

Solar PV Circuit Breaker DC1000V DC500V DC800V DC MCB 6A to 63A are designed to provide overcurrent protection within appliances or electrical equipment, where a branch circuit protection is already protection or not required. Devices are designed for direct current (DC) control circuit applications in Solar PV Systems.


  • Model Name: TOMC7-DC63

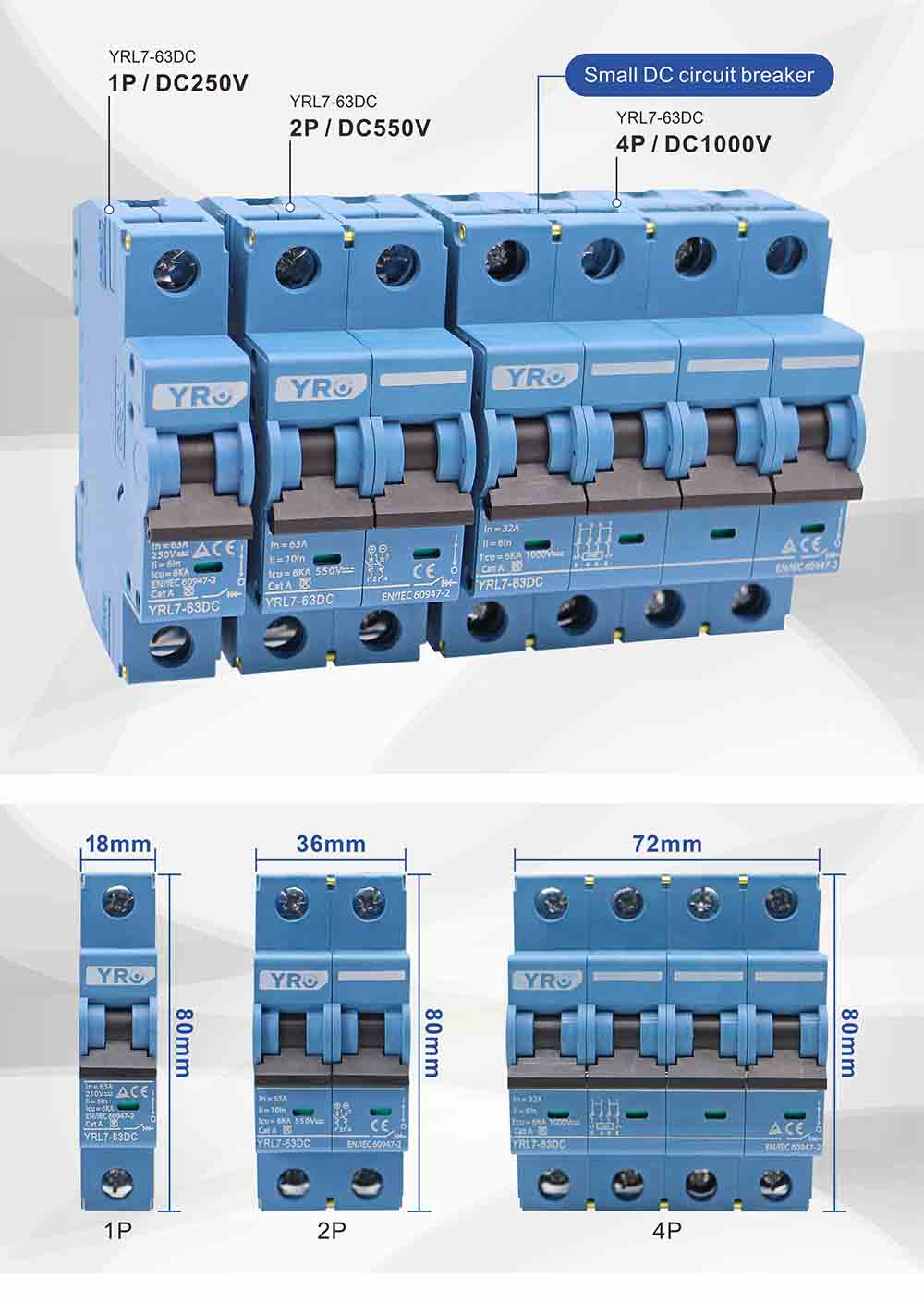

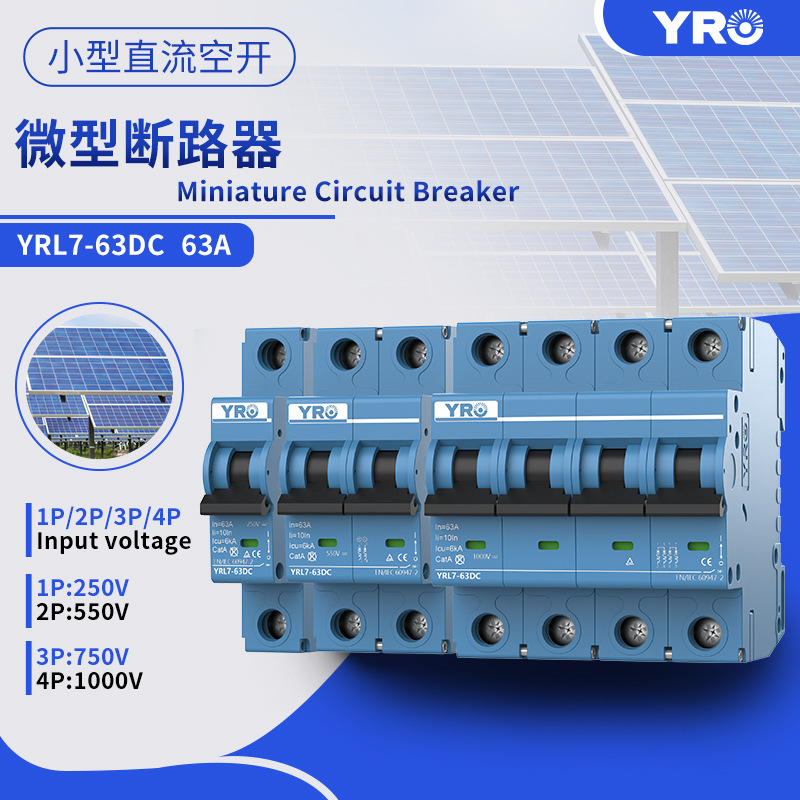

  • Pole No.: 1P, 2P, 4P
  • Rated Voltage: DC 550V/800V/1000V
  • Rated Current: 6A,10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A
  • Curve Type: C
  • Mounting Support: DIN rail 35mm
  • Product Detail

    Company

    Package

    Projects

    Application

    FAQ

    https://www.risinenergy.com/pv-fuse-breaker/

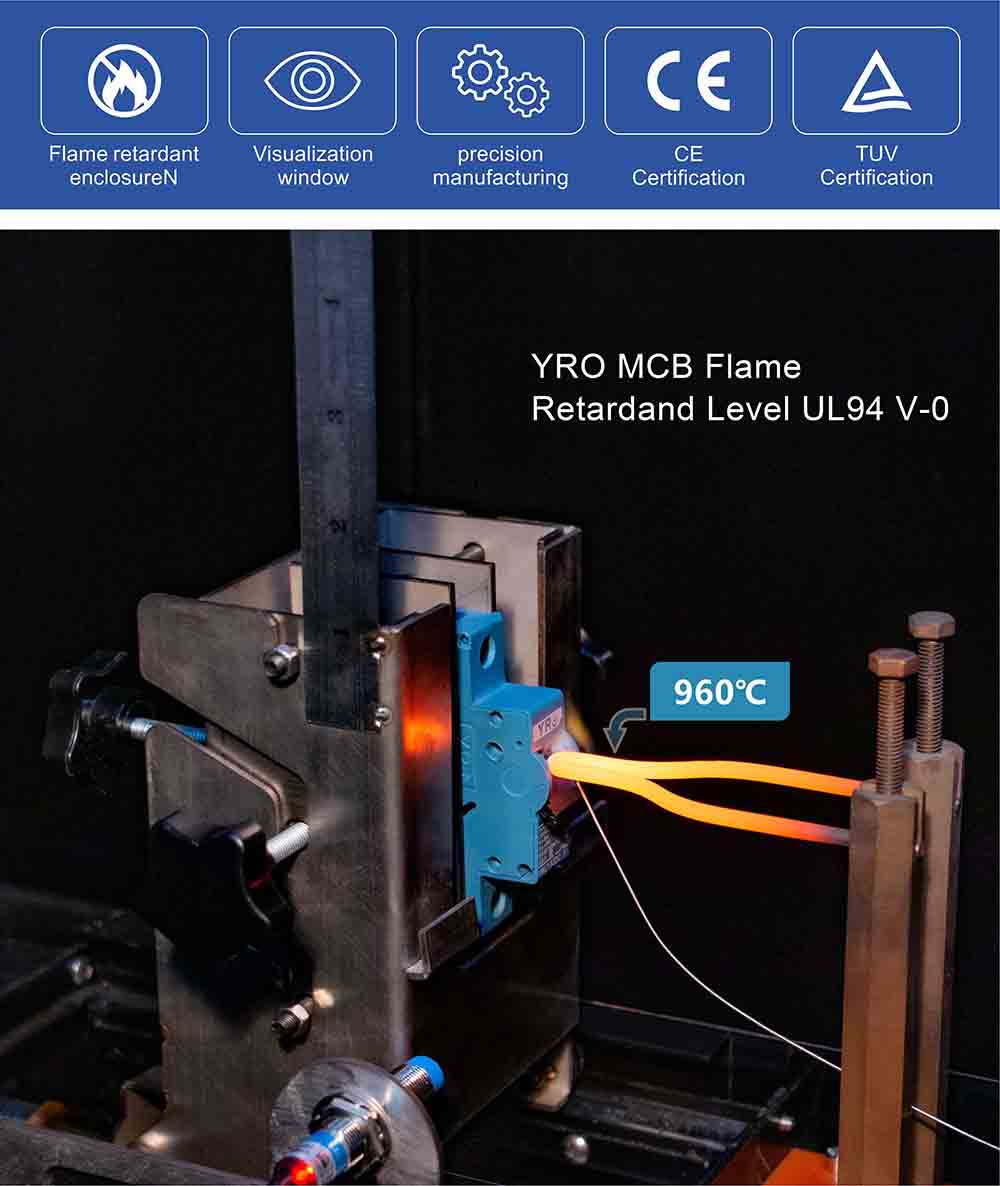

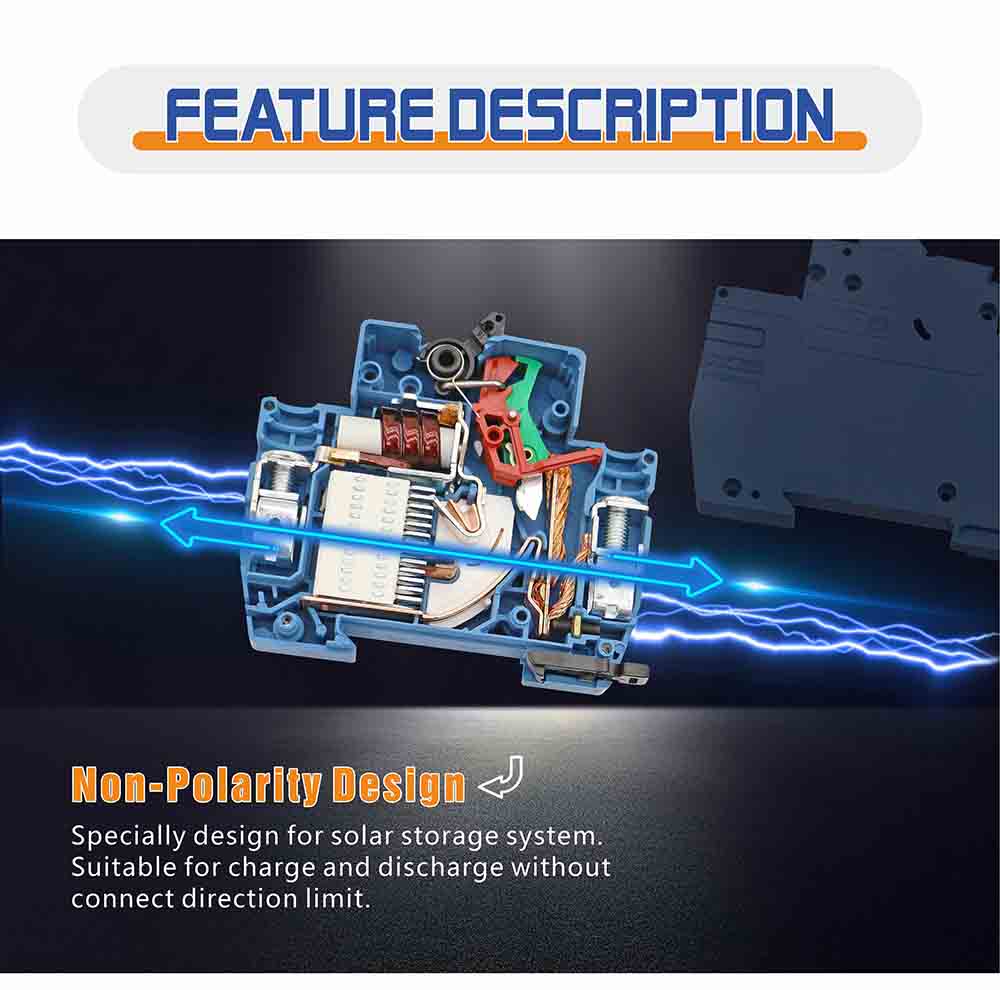

    Advantages of DC Circuit Breaker MCB 1P,2P,3P,4P

    1. DC Circuit Breakeris for non-professional operation by those untrained, and no maintenance is required.

    2. Satisfying conditions and applications as mentioned above,MCB with “ON-OFF” indicating device is considered suitable for isolation function.

    3. Particular devices such as surge protective devices,surge arrester etc are recommended to install at upstream line to MCB as precaution against potential surge voltage and current occurring at its power input side.

    4. Appropriate tripping curve being chosen and properly installed, MCB trips and switches off its protected circuit in case of fault, and thus provides protection against electric shock.

    5. Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.

    6. Protection against both overload and short circuit

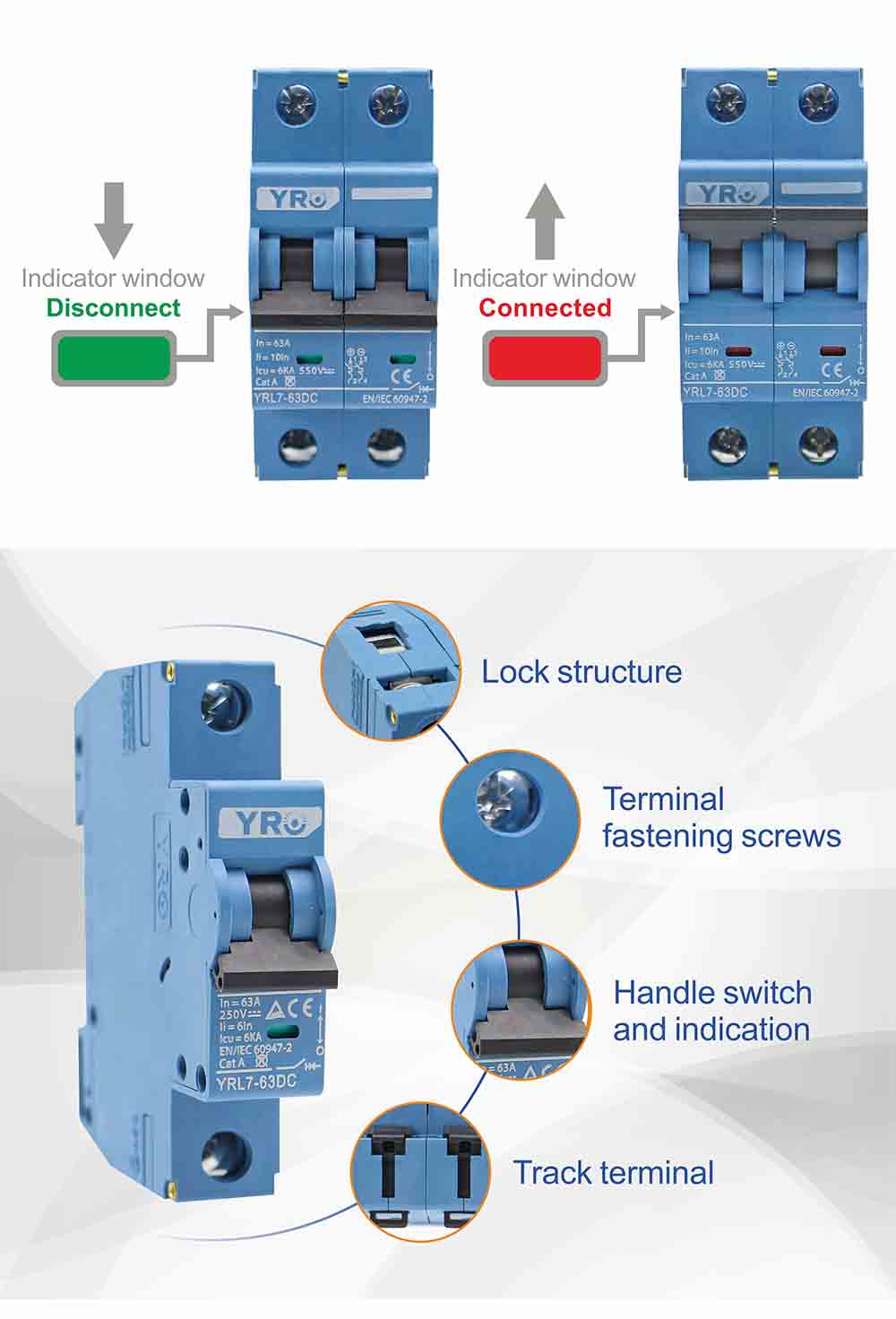

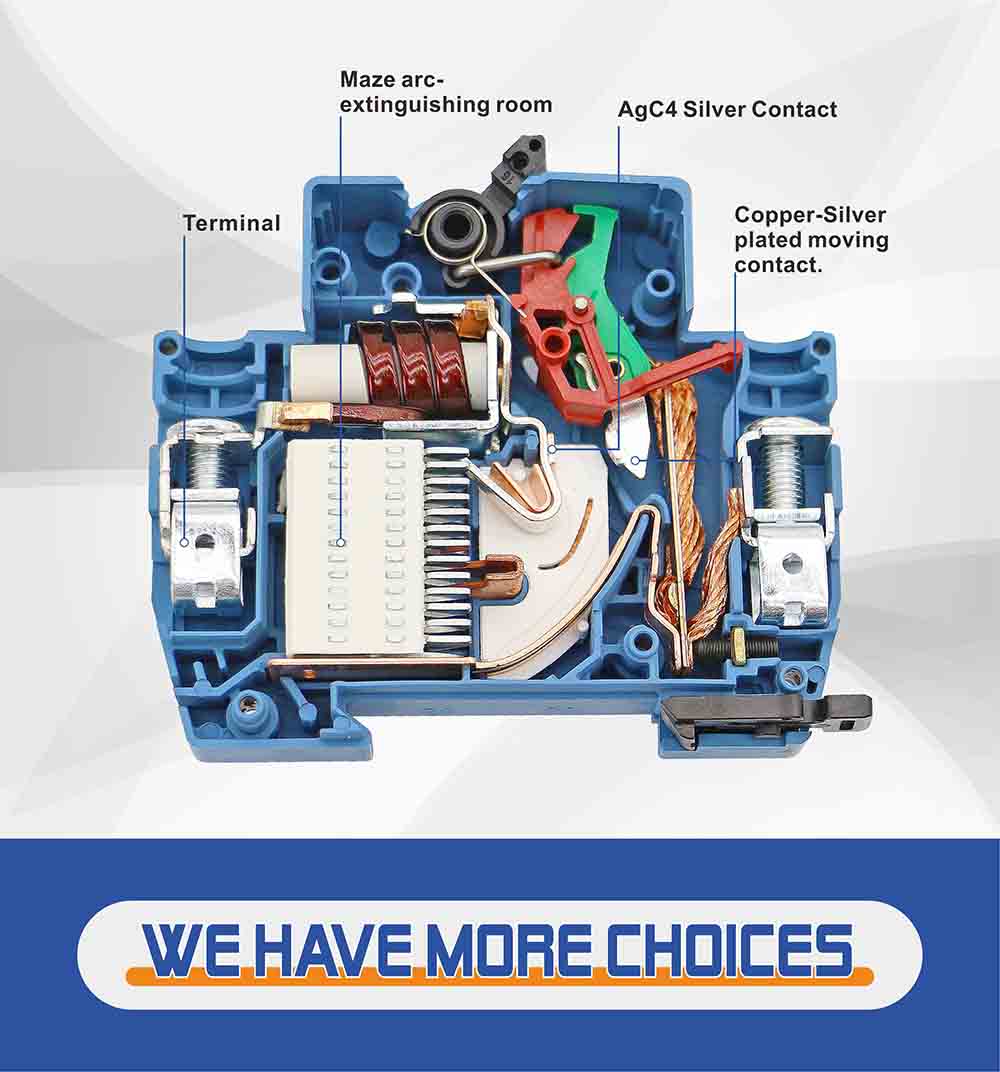

    7. Contact position indication

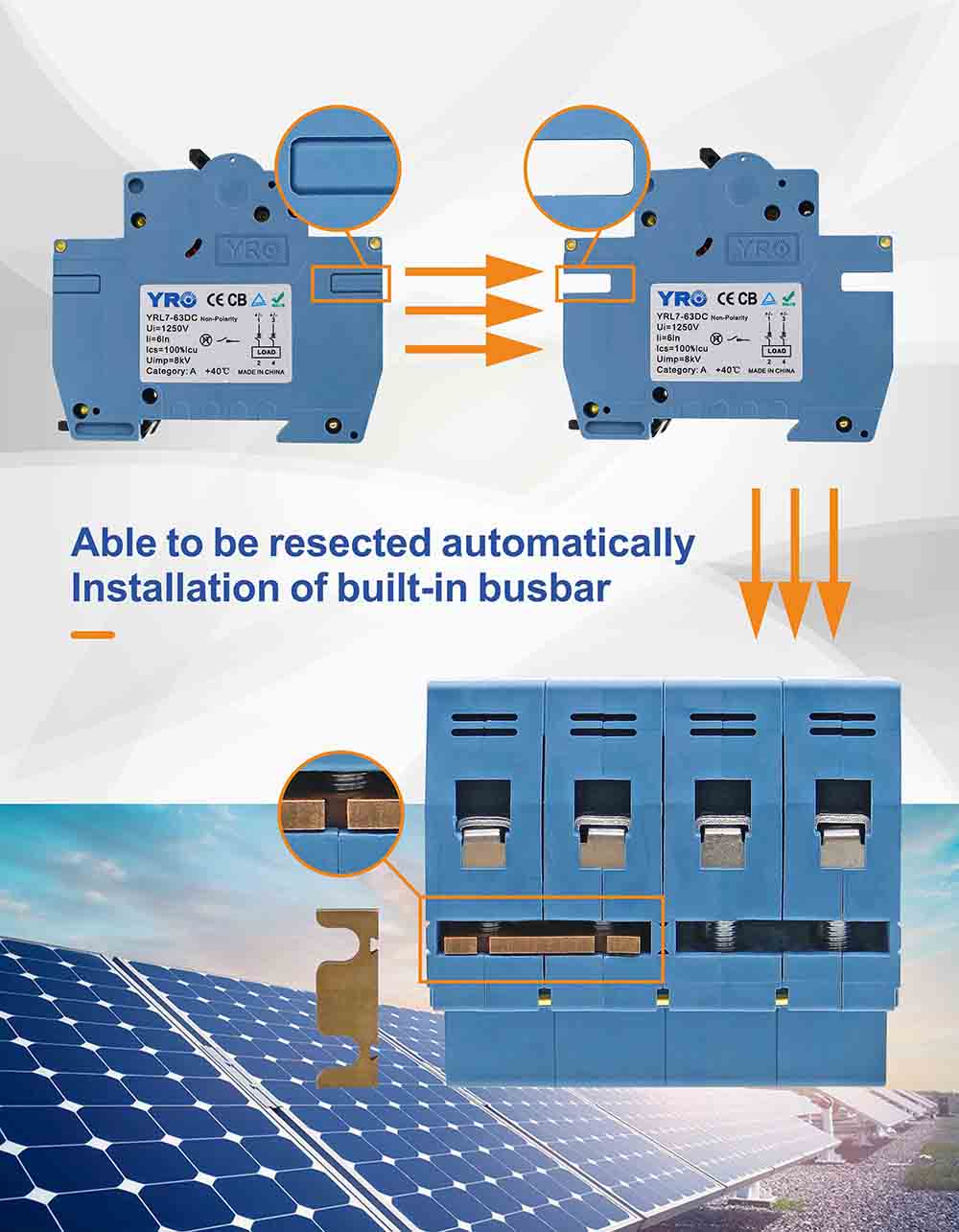

    8. Applicable to terminal and pin/fork type Busbar connection

    9. Easy mounting onto 35mm DIN rail

    MCB DC 2P 1



    https://www.risinenergy.com/solar-pv-circuit-breaker-dc1000v-dc500v-dc800v-dc-mcb-6a-to-63a-product/



    Technical Data of DC Circuit Breaker MCB 1P,2P,3P,4P

    Product Type Miniature circuit-breaker
    Poles 1P,2P,3P,4P
    Frame Degree Rated Current 63A
    Rated Current 6A,10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A
    Rated Operation Voltage DC 550V/800V/1000V
    Trip unit technology Thermal-magnetic
    Curve Type C
    Rated Impact Voltage Uimp 4kV
    Ultimate Breaking Capacity Icu 6kA
    Control Type Toggle
    Local Signalling ON/OFF indication
    Mounting Mode Clip-on
    Mounting Support DIN rail 35mm
    Endurance (O-C) , Electrical 10,000 cycles
    Endurance (O-C) , Mechanical durability 20,000 cycles
    Standards IEC 60947-2
    Waterproof Protection  lP40 for modular enclosure conforming to IEC 60529
    IP20 conforming to IEC 60529
    Operating Altitude 2000m
    Ambient Temperature for operation -35°C to +70°C
    Ambient Temperature for  storage -40°C to +85°C



    Product Data of DC Circuit Breaker MCB 1P,2P,3P,4P

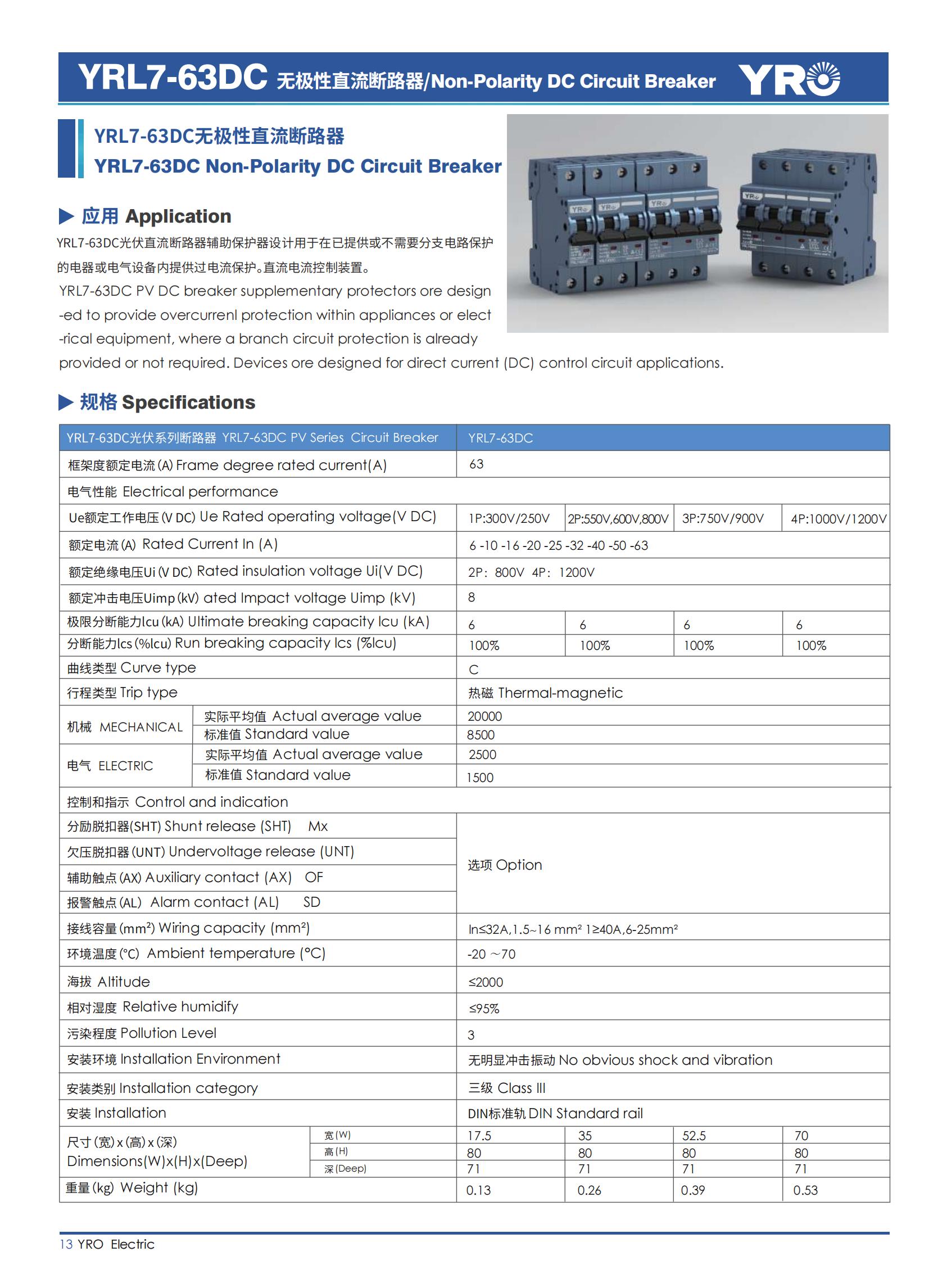

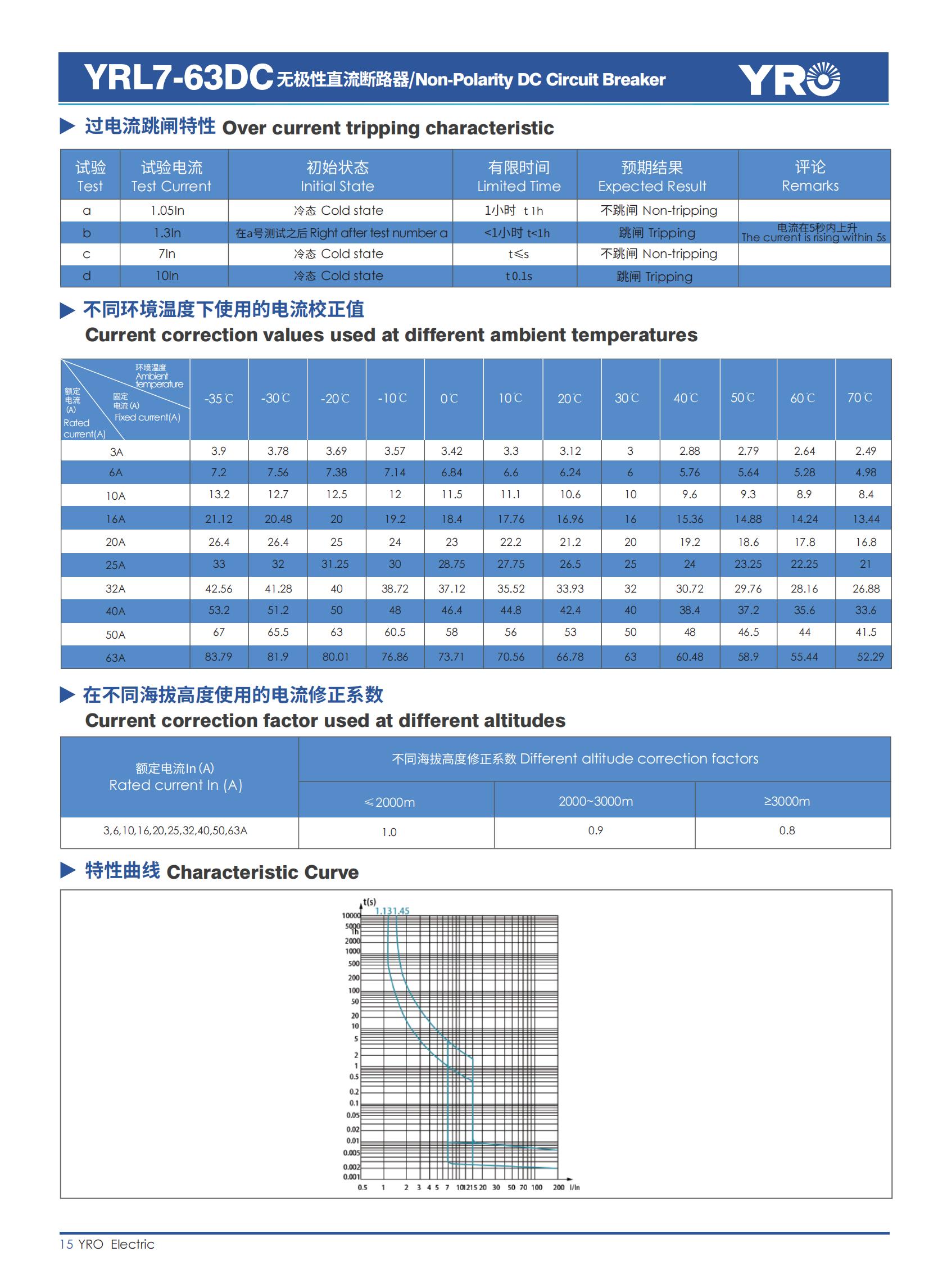

    DC Circuit Breaker-2P_页面_1

    DC Circuit Breaker-2P_页面_2



    Certificate of Circuit Breaker
